plug feed and check system

vibrating bowl feed & laser measure

To meet the demands of 100% checking and inspection requirement that are becoming standard within the automotive industry, TQC designed and manufactured a standalone machine for the automatic feeding and checking of an automotive plug.

Utilising an elevating hopper and vibratory bowl feeder to accept bulk product and orientate each plug, a laser measurement system is incorporated to check a feature on the product. The plug is transported through the machine using a walking beam and the part is rotated a full 360 degrees.

The automotive industry based customer required a 100% check to ensure that a continuous bead of thread locking sealant is the correct thickness and continuous round the flange.

The system accommodates a single size of stud at any one time, but is adjustable for sizes from M10 to M20, the overall throughput was 20 studs per minute.

  • Elevating Hopper & Vibratory Bowl Feeder
  • Laser displacement measurement system
  • Walking beam transfer system
  • PLC Control

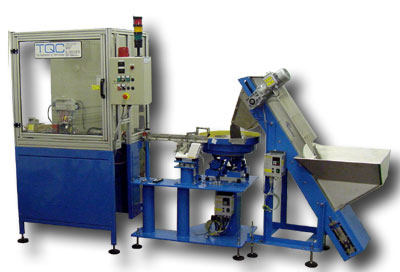

elevating hopper

walking beam transfer and laser inspection system

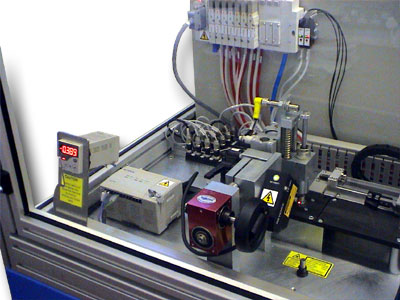

laser displacement measurement

TQC used it’s professional engineering project management approach to ensure that this project met both timescale and budget requirements.

TQC welcomes the opportunity to design and manufacture complete automation systems to client specifications. Contact our Engineers to advise you on your automation project.

If you have a current project that you are already looking at, or you are considering improvements to your production in the near future, call us and we will be happy to offer our professional advice & visit you at your site.
